Leave a comment Posted on January 7, 2018 12.2 Grid Infra, ASM, Oracle, Oracle Dba, Rac, restart

Install & Patch 12.2 GI in Oracle Restart

Introduction:

Where would we be without challenges. I have become team member of a project team for a new billing environment and this team is aiming to use ( and go live) with Oracle 12.2 Grind Infra structure and Database version). The information of this article will become a baseline for the installation of several Oracle environments on Linux. Oracle is referring to this as Oracle Restart. Next in line after that (and I love it) will be Real application clusters to be set up.

General Preparations 12.2 Grid Kata:

## Identifying ORACLE_BASE and layout of Grid Infrastructure.

echo $ORACLE_BASE
/app/oracle

echo $ORACLE_HOME
/app/grid/product/12.2.0.1/grid

## Identifying ORACLE_BASE  and Db software
echo $ORACLE_BASE
/app/oracle

echo $ORACLE_HOME
/app/oracle/product/12.2.0.1/db

## So for the 12.2 layout which is in scope for the actions on a Restart or Rac environment:

+ASM1     /app/grid/product/12.2.0.1/grid
CRS       /app/grid/product/12.2.0.1/grid
-MGMTDB   /app/grid/product/12.2.0.1/grid
MYDB     /app/oracle/product/12.2.0.1/db

## Checking Red Hat release:

oracle@mysrvr1hr:/dev/mapper []# cat /etc/redhat-release
Red Hat Enterprise Linux Server release 6.9 (Santiago)

## Oracle restart installation for 12.2 instructions to be found:

https://docs.oracle.com/en/database/oracle/oracle-database/12.2/ladbi/installing-oracle-grid-infrastructure-for-a-standalone-server-with-a-new-database-installation.html#GUID-0B1CEE8C-C893-46AA-8A6A-7B5FAAEC72B3

Interesting point is that in 12.2 the famous, well known runInstaller is replaced by ./gridSetup.sh (when opening runInstaller even ran into errors (oui-10133 wen running runInstaller in 12.2). Second point of interest will be that you have to pre-create the directory where the software will be running.

oui-10133

## Preparations for Installation:

On the server where you will install the Grid infrastructure create the directory where you want to install the software (the location you will later on call Your ORACLE_HOME). On the source server and in my specific case that meant that: I had to do mkdir -p /app/grid/product/12.2.0.1/grid on the source server.
From Solltau: oracle@myhost:/opt/oracle/Odrive/depot/software/oracle/12c/GI []# scp linuxx64_12201_grid_home.zip oracle@mysrvr1hr:/app/grid/product/12.2.0.1/grid
UNSET your environment variables if any on the installation box:

unset ORACLE_BASE
unset ORACLE_HOME
unset GI_HOME
unset ORA_CRS_HOME
unset TNS_ADMIN
unset ORACLE_SID
unset ORA_NLS10

echo $ORACLE_BASE etc.

## Check zip file in the destination that will also become your ORACLE_HOME for this install.

oracle@mysrvr1hr:/app/grid/product/12.2.0.1/grid []# ls -ltr
total 2924504
-rw-r--r--. 1 oracle dba 2994687209 Jan 3 16:28 linuxx64_12201_grid_home.zip

Make sure you use the future ORACLE_HOME destination to unzip the file. This is mandatory because compared to previous Installations where you can alter the Software installed directory, during the 12.2 installation there will NOT be an option to choose the destination where to setup this installation. ## make sure you are in the directory /app/grid/product/12.2.0.1/grid and extract the zip!!

##Once the Zip file is extracted fire below script:

./gridSetup.sh

In one of the following detailed screens make sure you change “change directory path” to discover the disks that you will be using for this installation. In my case this meant that the Linux Admin colleague has set up – has labelled dedicated Luns (disks) as a preparation to my actions.

root # ls -lH /dev/mapper/ASM_*

brw-rw----. 1 oracle dba 253,  6 Dec 22 16:01 /dev/mapper/ASM_ACFS_035_001
brw-rw----. 1 oracle dba 253, 33 Dec 22 16:01 /dev/mapper/ASM_OCRM_008_001
brw-rw----. 1 oracle dba 253, 34 Dec 22 16:01 /dev/mapper/ASM_OCRM_008_002

brw-rw----. 1 oracle dba 253, 25 Dec 22 16:01 /dev/mapper/ASM_VOTE_008_001
brw-rw----. 1 oracle dba 253, 26 Dec 22 16:01 /dev/mapper/ASM_VOTE_008_002
brw-rw----. 1 oracle dba 253, 30 Dec 22 16:01 /dev/mapper/ASM_VOTE_008_003

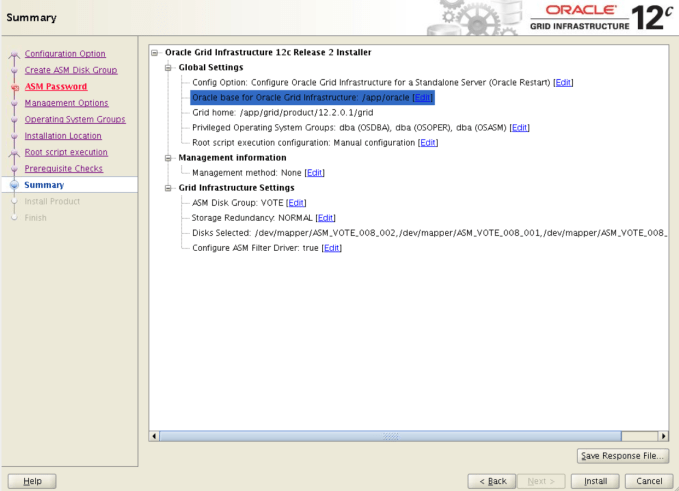

## Once you have made all the selections needed below screen will appear:

Grid summary

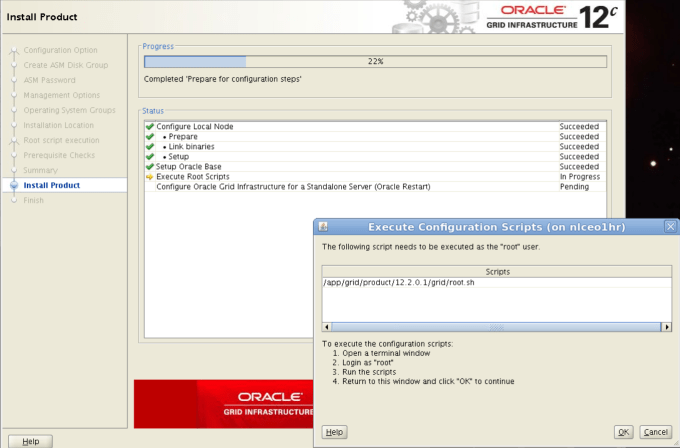

Once you selected install you will be updated by next progress screen:

Grid prograss

## In a separate screen as the Root user ./root.sh has to run which will show:

mysrvr1hr:root:/app/grid/product/12.2.0.1/grid # ./root.sh

Performing root user operation.
The following environment variables are set as:

ORACLE_OWNER= oracle
ORACLE_HOME= /app/grid/product/12.2.0.1/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Using configuration parameter file: /app/grid/product/12.2.0.1/grid/crs/install/crsconfig_params
The log of current session can be found at:
/app/oracle/crsdata/mysrvr1hr/crsconfig/roothas_2018-01-03_05-02-27PM.log

## logging details of root.sh :
LOCAL ADD MODE
Creating OCR keys for user 'oracle', privgrp 'dba'..
Operation successful.
LOCAL ONLY MODE
Successfully accumulated necessary OCR keys.
Creating OCR keys for user 'root', privgrp 'root'..
Operation successful.

CRS-4664: Node mysrvr1hr successfully pinned.
2018/01/03 17:02:50 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.conf'
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'mysrvr1hr'
CRS-2673: Attempting to stop 'ora.evmd' on 'mysrvr1hr'
CRS-2677: Stop of 'ora.evmd' on 'mysrvr1hr' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'mysrvr1hr' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.

mysrvr1hr 2018/01/03 17:03:44 /app/grid/product/12.2.0.1/grid/cdata/mysrvr1hr/backup_20180103_170344.olr 0
2018/01/03 17:03:49 CLSRSC-327: Successfully configured Oracle Restart for a standalone server
mysrvr1hr:root:/app/grid/product/12.2.0.1/grid #

Resolving possible issues: 12.2 GI standalone : [INS-20802] Automatic Storage Management Configuration Assistant failed (Doc ID 2277224.1)

grid completing

## The Installation will create the ASM instance with a default spfile. Due to company standards and due to best practice (knowing that size does matter and default settings will not do well in a heavily used environment) you should connect to the ASM instance and alter below values:

## Specific setup for asm Instance

ALTER SYSTEM SET memory_max_target=4096M SCOPE=SPFILE;
ALTER SYSTEM SET memory_target=1536M SCOPE=SPFILE;
ALTER SYSTEM SET large_pool_size=100M SCOPE=SPFILE;
ALTER SYSTEM SET shared_pool_size=512M SCOPE=BOTH;
ALTER SYSTEM SET shared_pool_reserved_size=100M SCOPE=SPFILE;

## Nothing to do with performance but mandatory due to Standards.
ALTER SYSTEM SET audit_file_dest='/app/oracle/+ASM/admin/adump' SCOPE=SPFILE;
ALTER SYSTEM SET background_dump_dest='/app/oracle/diag/asm/+asm/+ASM/trace' SCOPE=BOTH;

## Company Standards as with regard to listener:

Log destination: /app/oracle/diag/tnslsnr/mysrvr1hr/listener
One listener per vip

## So I have added a listener with the netca tool running from the GridInfrastructurehome.

## /app/oracle/diag/tnslsnr/<servername>/<listenername>/trace

oracle@mysrvr1hr:/app/grid/product/12.2.0.1/grid/network/admin [+ASM]# lsnrctl status LISTENER_MYSRVR1HR

## Deinstallation when needed. As always you might need a way out (back again) .

https://docs.oracle.com/en/database/oracle/oracle-database/12.2/ladbi/deinstalling-previous-release-grid-home.html#GUID-D84F94CE-251C-4D3B-9D6E-F584FB30F5B3

Note: For upgrades from previous releases, if you want to uninstall the previous release Grid home, then perform the following steps:

Log in as the root user.
Manually change the permissions of the previous release Grid home (see below).
Run the /app/grid/product/12.2.0.1/grid/deinstall/deinstall command (as oracle User).

For example, on Grid Infrastructure for a standalone server:

# chown -R oracle:dba /app/grid/product/12.2.0.1
# chmod -R 775 /app/grid/product/12.2.0.1

In this example:
/u01/app/oracle/product/11.2.0/grid is the previous release Oracle Grid Infrastructure for a standalone server home

oracle is the Oracle Grid Infrastructure installation owner user
dba is the name of the Oracle Inventory group (OINSTALL group)

For example, on Oracle Database:

# chown -R oracle:dba /app/oracle/product/12.2.0.1
# chmod -R 775 /app/oracle/product/12.2.0.1

If all is well Time to start Patching the Environment !

## patching : GI : p26737266_122010_Linux-x86-64.zip

## oracle@soltau2:/opt/oracle/Odrive/depot/software/oracle/patches/Linuxx86 []# scp p26737266_122010_Linux-x86-64.zip oracle@mysrvr1hr:/app/grid/product/12.2.0.1/stage

## check current situation with opatch before patching.

opatch lsinventory -detail -oh /app/grid/product/12.2.0.1/grid

This shows:

Oracle Interim Patch Installer version 12.2.0.1.6
Copyright (c) 2018, Oracle Corporation.  All rights reserved.

Oracle Home       : /app/grid/product/12.2.0.1/grid
Central Inventory : /app/oraInventory
from           : /app/grid/product/12.2.0.1/grid/oraInst.loc

OPatch version    : 12.2.0.1.6
OUI version       : 12.2.0.1.4

Log file location : /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatch/opatch2018-01-05_14-39-27PM_1.log
Lsinventory Output file location : /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatch/lsinv/lsinventory2018-01-05_14-39-27PM.txt
--------------------------------------------------------------------------------
Local Machine Information::
Hostname: mysrvr1hr.mydomain

ARU platform id: 226
ARU platform description:: Linux x86-64
Installed Top-level Products (1):
Oracle Grid Infrastructure 12c                                       12.2.0.1.0
There are 1 products installed in this Oracle Home.

Installed Products (99):
etc.
.
.
There are 99 products installed in this Oracle Home.
There are no Interim patches installed in this Oracle Home.
--------------------------------------------------------------------------------
OPatch succeeded.

## Use opatch to check for conflicts:

$ORACLE_HOME/OPatch/opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /app/grid/product/12.2.0.1/stage/26737266/26710464
$ORACLE_HOME/OPatch/opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /app/grid/product/12.2.0.1/stage/26737266/26925644
$ORACLE_HOME/OPatch/opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /app/grid/product/12.2.0.1/stage/26737266/26737232
$ORACLE_HOME/OPatch/opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /app/grid/product/12.2.0.1/stage/26737266/26839277
$ORACLE_HOME/OPatch/opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /app/grid/product/12.2.0.1/stage/26737266/26928563

## This did not show any conflicts

## Next step will be : use opatch check for space requirements (you would not want to end up installation failing due to lacking storage:

For Grid Infrastructure Home, as home user:

Create file /tmp/patch_list_gihome.txt with the following content:
cat /tmp/patch_list_gihome.txt3.

/app/grid/product/12.2.0.1/stage/26737266/269285634.
/app/grid/product/12.2.0.1/stage/26737266/268392775.
/app/grid/product/12.2.0.1/stage/26737266/267372326.
/app/grid/product/12.2.0.1/stage/26737266/269256447.
/app/grid/product/12.2.0.1/stage 26737266/26710464

Run the opatch command to check if enough free space is available in the Grid Infrastructure Home:

$ORACLE_HOME/OPatch/opatch prereq CheckSystemSpace -phBaseFile /tmp/patch_list_gihome.txt

## this shows

oracle@mysrvr1hr:/app/grid/product/12.2.0.1/stage [+ASM]# $ORACLE_HOME/OPatch/opatch prereq CheckSystemSpace -phBaseFile /tmp/patch_list_gihome.txt
Oracle Interim Patch Installer version 12.2.0.1.6
Copyright (c) 2018, Oracle Corporation.  All rights reserved.

PREREQ session

Oracle Home       : /app/grid/product/12.2.0.1/grid
Central Inventory : /app/oraInventory
from           : /app/grid/product/12.2.0.1/grid/oraInst.loc

OPatch version    : 12.2.0.1.6
OUI version       : 12.2.0.1.4

Log file location : /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatch/opatch2018-01-05_14-55-06PM_1.log
Invoking prereq "checksystemspace"

Prereq "checkSystemSpace" passed.
OPatch succeeded.

## To patch only the GI home:

# opatchauto apply /app/grid/product/12.2.0.1/stage/26737266 -oh /app/grid/product/12.2.0.1/grid

## failed with:

OPATCHAUTO-72046: Invalid wallet parameters.
OPATCHAUTO-72046: The wallet path or wallet password provided is not valid.
OPATCHAUTO-72046: Please provide valid wallet information.

opatchauto bootstrapping failed with error code 46.

## Thank you Mos for elaborating.

OPATCHAUTO-72046: Invalid wallet parameters (Doc ID 2150070.1)

opatchauto command is not being run as root user. Opatchauto for Grid PSUs should always be run as root user.

## So as the root user :

/app/grid/product/12.2.0.1/grid/OPatch/opatchauto apply /app/grid/product/12.2.0.1/stage/26737266 -oh /app/grid/product/12.2.0.1/grid

## and it failed again !!!

mysrvr1hr:root:/root # /app/grid/product/12.2.0.1/grid/OPatch/opatchauto apply /app/grid/product/12.2.0.1/stage/26737266 -oh /app/grid/product/12.2.0.1/grid

System initialization log file is /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchautodb/systemconfig2018-01-05_03-09-09PM.log.
Session log file is /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/opatchauto2018-01-05_03-09-12PM.log

The id for this session is 5LQ1
[init:init] Executing OPatchAutoBinaryAction action on home /app/grid/product/12.2.0.1/grid
Executing OPatch prereq operations to verify patch applicability on SIHA Home........
[init:init] OPatchAutoBinaryAction action completed on home /app/grid/product/12.2.0.1/grid with failure
Execution of [OPatchAutoBinaryAction] patch action failed, check log for more details. Failures:
Patch Target : mysrvr1hr->/app/grid/product/12.2.0.1/grid Type[siha]

Details: [
---------------------------Patching Failed---------------------------------
Command execution failed during patching in home: /app/grid/product/12.2.0.1/grid, host: mysrvr1hr.
Command failed:  /app/grid/product/12.2.0.1/grid/OPatch/opatchauto  apply /app/grid/product/12.2.0.1/stage/26737266 -oh /app/grid/product/12.2.0.1/grid -target_type has -binary -invPtrLoc /app/grid/product/12.2.0.1/grid/oraInst.loc -persistresult /app/grid/product/12.2.0.1/grid/OPatch/auto/dbsessioninfo/sessionresult_analyze_mysrvr1hr_siha.ser -analyze -online
Command failure output:
==Following patches FAILED in analysis for apply:

Patch: /app/grid/product/12.2.0.1/stage/26737266/26925644
Log: /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/core/opatch/opatch2018-01-05_15-09-16PM_1.log

Reason: Failed during Analysis: CheckNApplyReport Failed, [ Prerequisite Status: FAILED, Prerequisite output:
The details are:
Prerequisite check "CheckMinimumOPatchVersion" failed.]
Failed during Analysis: CheckMinimumOPatchVersion Failed, [ Prerequisite Status: FAILED, Prerequisite output:

The details are:
The OPatch being used has version 12.2.0.1.6 while the following patch(es) require higher versions:

Patch 26710464 requires OPatch version 12.2.0.1.7.

Please download latest OPatch from My Orac ...

etc.
.
.

OPatchAuto failed.

opatchauto failed with error code 42

mysrvr1hr:root:/root #

## So I downloaded latest opatch version and parked it in a temporary directory on that targeted server:

unzip p6880880_122011_Linux-x86-64.zip -d /app/grid/product/12.2.0.1/grid

## now Opatch shows:

oracle@mysrvr1hr:/app/grid/product/12.2.0.1/opatch [+ASM]# opatch version
OPatch Version: 12.2.0.1.11

OPatch succeeded.

## Sometimes you just have to be patient to hear the lambs being silent:

## Next run as the root user :

/app/grid/product/12.2.0.1/grid/OPatch/opatchauto apply /app/grid/product/12.2.0.1/stage/26737266 -oh /app/grid/product/12.2.0.1/grid

## logfiles:

oracle@mysrvr1hr:/app/oracle/crsdata/mysrvr1hr/crsconfig

-rw-rw----. 1 oracle dba  17364 Jan  5 15:35 hapatch_2018-01-05_03-34-42PM.log

-rw-rw----. 1 oracle dba  23725 Jan  5 15:42 hapatch_2018-01-05_03-42-41PM.log

##showed
mysrvr1hr:root:/root # /app/grid/product/12.2.0.1/grid/OPatch/opatchauto apply /app/grid/product/12.2.0.1/stage/26737266 -oh /app/grid/product/12.2.0.1/grid
OPatchauto session is initiated at Fri Jan  5 15:33:54 2018
System initialization log file is /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchautodb/systemconfig2018-01-05_03-33-58PM.log.
Session log file is /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/opatchauto2018-01-05_03-34-02PM.log

The id for this session is XLE2
Executing OPatch prereq operations to verify patch applicability on home /app/grid/product/12.2.0.1/grid
Patch applicability verified successfully on home /app/grid/product/12.2.0.1/grid

Bringing down CRS service on home /app/grid/product/12.2.0.1/grid
Prepatch operation log file location: /app/oracle/crsdata/mysrvr1hr/crsconfig/hapatch_2018-01-05_03-34-42PM.log
CRS service brought down successfully on home /app/grid/product/12.2.0.1/grid

Start applying binary patch on home /app/grid/product/12.2.0.1/grid
Binary patch applied successfully on home /app/grid/product/12.2.0.1/grid

Starting CRS service on home /app/grid/product/12.2.0.1/grid
Postpatch operation log file location: /app/oracle/crsdata/mysrvr1hr/crsconfig/hapatch_2018-01-05_03-42-41PM.log
CRS service started successfully on home /app/grid/product/12.2.0.1/grid

OPatchAuto successful.

--------------------------------Summary--------------------------------
Patching is completed successfully. Please find the summary as follows:
Host:mysrvr1hr
SIHA Home:/app/grid/product/12.2.0.1/grid

Summary:
==Following patches were SUCCESSFULLY applied:
Patch: /app/grid/product/12.2.0.1/stage/26737266/26710464
Log: /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/core/opatch/opatch2018-01-05_15-35-04PM_1.log

Patch: /app/grid/product/12.2.0.1/stage/26737266/26737232
Log: /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/core/opatch/opatch2018-01-05_15-35-04PM_1.log

Patch: /app/grid/product/12.2.0.1/stage/26737266/26839277
Log: /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/core/opatch/opatch2018-01-05_15-35-04PM_1.log

Patch: /app/grid/product/12.2.0.1/stage/26737266/26925644
Log: /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/core/opatch/opatch2018-01-05_15-35-04PM_1.log

Patch: /app/grid/product/12.2.0.1/stage/26737266/26928563
Log: /app/grid/product/12.2.0.1/grid/cfgtoollogs/opatchauto/core/opatch/opatch2018-01-05_15-35-04PM_1.log

OPatchauto session completed at Fri Jan  5 15:43:05 2018
Time taken to complete the session 9 minutes, 11 seconds

Happy Dba , Installed 12.2 GI and Patched it with RU October 2017.

Thanks for reading and till we meet again,

Mathijs.

Leave a comment Posted on November 23, 2014November 23, 2014 Oracle, Oracle Dba

The Classic case of OFFLINE Drop in an EMC BCV with Transportable Tablespace

Introduction:

Recently in the team we came across the fact that we had to be working a lot with technology inside the EMC storage environment which is called BCV ( business continuity volume) . This technology enables the possibility to clone a (production) Oracle database to another server. Another method would be to use Snaps in the EMC but that is out of scope for this blog now ( though I do work with them as well and to an Oracle Dba the End result is the same cause both technologies offer replication – cloning ).

In this scenario there are two ways to do to an replication of the data in the EMC env..

Either you will do an alter database begin backup – and backup than do a split in the EMC , do and alter database end backup on the source side . After that on the Unix Side the disks need to be made visible and mounted (when using file systems). If you are using ASM then Linux administrators need to make sure that all the disks needed for the database are present in the multi-path configuration. Once that Unix/ Linux part is done you could mount the database ( when using a file system structure ) or mount the disk groups in ASM and then mount the database for backups or open the database.
Or you do a split in the EMC ( without the begin and end backup) on the source environment. The rest of the scenario is similar to 1 which means make the disk visible and mount the database or mount the disk groups , then mount the database. In this scenario you will open the Database on this target side thus performing a crash recovery of the instance.

In this blog we will follow scenario 2. Once the file systems are mounted on the target Unix machine the database is opened. Purpose of this all would be to create a migration database where the project members could consolidate data in a local and extra created tablespace as part of a migration strategy.

Details

After the file systems had been mounted by Unix Admins , by dbas request some extra local mount points had been set up on top of the mount points that had come across with the BCV. Once the database was opened the first time an extra tablespace was created on those file systems only locally present on the target machine. This tablespace was created 1.1TB in size. Together with project it was agreed that this tablespace would become a transportable tablespace since recreating it after a BCV refresh would take some 6 to 7 hours each time a refresh occurred. Making it a transportable tablespace would offer the idea of unplugging it right before a BCV refresh would occur and plugging it back in after a refresh thus saving time.

This scenario worked well many times, but as always one time things did not work out well. After a refresh and after the plug-in of the tablespaces there was technical issue on the local file systems . Unix Admins had run repair jobs on the file system where the datafiles of the transportable tablespace (TTS) was located and in the end even had cleaned out that file system .. So there i was with a refreshed database that had plugged in the transportable tablespace of 1.1TB and the database had crashed and would not open ( since the datafiles for the TTS where missing). A refresh from production would take 3 – 4 hours extra downtime and i would still have to recreate the tablespace by hand anyhow after that .

Then i recalled a scenario from the old days in which the scenario was that you had a database without a backup of the new created tablespace that had crashed. Once again Google was my friend and after doing some reading I set up the scenario below after confirming that this could be my way out:

## First of all it was needed to find all the datafiles supposed to be part of this TTS:

select FILE#,substr(NAME,1,80)
from v$datafile
where name like ‘%CVN_TBS%’
order by 1;

SQL> /

FILE# SUBSTR(NAME,1,80)
———- ——————————————————————————–
1063 /db/MYDB1/cvn_tbs/CVN_TBS_050.dbf
.

.
1113 /db/MYDB1/cvn_tbs/CVN_TBS_005.dbf
1114 /db/MYDB1/cvn_tbs/CVN_TBS_004.dbf
1115 /db/MYDB1/cvn_tbs/CVN_TBS_003.dbf
1116 /db/MYDB1/cvn_tbs/CVN_TBS_002.dbf
1117 /db/MYDB1/cvn_tbs/CVN_TBS_001.dbf

55 rows selected.

## Next step was to offline drop them since there was no Backup present.

select ‘alter database datafile ‘||file#||’ offline drop ;’
from v$datafile
where name like ‘%CVN_TBS%’
order by 1;

## Spooled it to a file and ran the script so that dropped the datafiles ..

## In the next step opened db
alter database open;

## Recreating the 1.1 TB tablespace would take long hours so i created the tablespace first with a small datafile then started alter tablespace with ranges of datafile to be added in script and ran it in background..

#!/bin/ksh
#
# start all steps
#

## recreate
cat step6_all.ksh
nohup /opt/oracle/SRCENS1/admin/create/step6_1.ksh&
sleep 60
nohup /opt/oracle/SRCENS1/admin/create/step6_11.ksh& <– adding datafile #2 – 10
nohup /opt/oracle/SRCENS1/admin/create/step6_21.ksh& <– adding datafile #11 – 20
nohup /opt/oracle/SRCENS1/admin/create/step6_31.ksh&
nohup /opt/oracle/SRCENS1/admin/create/step6_41.ksh&
nohup /opt/oracle/SRCENS1/admin/create/step6_51.ksh&

Since I knew that project would not need all 1.1 TB from the first minute that scenario minimized my downtime, thus saving time. And indeed at the next normal refresh first I unplugged the TTS again , got a new refreshed BCV and plugged the TTS back in . Thus making everybody happy again.

As always happy reading and till we meet again,

Mathijs

Leave a comment Posted on October 25, 2014 Oracle, Oracle Dba, Rac

When your Restart / Rac Node screams : [ohasd(1749)]CRS-0004:logging terminated

Introduction:

During one of those days on a Monday where a hot line ( ticket ) service was provided team received a ticket that all instances of an Oracle Restart ( 11.2.0.3) where down. I assisted in doing troubleshooting which is always fun because that gives a bit of a Sherlock Holmes idea investigating issues at hand . After logging on to the box I saw that the ASM Instance was up but a “crsctl check has” showed that no communication with has daemon could be established. So the puzzle became a bit more interesting at that moment .

Details:

Environment is an Oracle restart environment on Linux.
11.2.0.3 Grid Infra with 11.2.0.3 Databases running on it
Grid infra has been installed in: /opt/crs/product/11203/crs/
Environment went down during the weekend ( fortunately it was a Test environment with a standard office time SLA)

It was time to take a peek in the alert-log of the cluster on that node. Since my installation was done in: /opt/crs/product/11203/crs/ that meant I had to look for the log-file in the subdirectory: /opt/crs/product/11203/crs/log/mysrvr01/ ( where in the cluster mysrvr01 is the name of the node i was working on ) to see the alert-file. In there I found this showing what was going on:

2014-10-18 10:47:37.060:
[ohasd(1749)]CRS-0004:logging terminated for the process. log file: “/opt/crs/product/11203/crs/log/mysrvr01/ohasd/ohasd.log”
2014-10-18 10:47:37.128:
[ohasd(1749)]CRS-10000:CLSU-00100: Operating System function: mkdir failed with error data: 28
CLSU-00101: Operating System error message: No space left on device
CLSU-00103: error location: authprep6
CLSU-00104: additional error information: failed to make dir /opt/crs/product/11203/crs/auth/ohasd/mysrvr01/A4107671
2014-10-18 10:47:37.146:
[ohasd(1749)]CRS-10000:CLSU-00100: Operating System function: mkdir failed with error data: 28
CLSU-00101: Operating System error message: No space left on device
CLSU-00103: error location: authprep6
CLSU-00104: additional error information: failed to make dir /opt/crs/product/11203/crs/auth/ohasd/mysrvr01/A5139099

With this as a clue dear Watson it was a lot easier to proceed. Started hunting large files in the file system of the /opt/crs/product/11203/crs/ and found a flood of XML files that had not been erased for ages there . Which made me realize that a clean up job in cron would become handy for this as well.

After removing the xmls and checking the mount point again I logged in as Root and first issued a crsctl start has.

After some time i noticed in the alert log of the node :
014-10-20 08:26:50.847:
[/opt/crs/product/11203/crs/bin/oraagent.bin(32461)]CRS-5818:Aborted command ‘check’ for resource ‘ora.DATA1.dg’. Details at (:CRSAGF00113:) {0:0:2} in /opt/crs/product/11203/crs/log/mysrvr01/agent/ohasd/oraagent_oracle/oraagent_oracle.log.
2014-10-20 08:26:50.847:
[/opt/crs/product/11203/crs/bin/oraagent.bin(32461)]CRS-5818:Aborted command ‘check’ for resource ‘ora.DUMMY_DATA.dg’. Details at (:CRSAGF00113:) {0:0:2} in /opt/crs/product/11203/crs/log/mysrvr01/agent/ohasd/oraagent_oracle/oraagent_oracle.log.
2014-10-20 08:26:50.847:
[/opt/crs/product/11203/crs/bin/oraagent.bin(32461)]CRS-5818:Aborted command ‘check’ for resource ‘ora.FRA1.dg’. Details at (:CRSAGF00113:) {0:0:2} in /opt/crs/product/11203/crs/log/mysrvr01/agent/ohasd/oraagent_oracle/oraagent_oracle.log.
2014-10-20 08:27:52.189:
[evmd(4105)]CRS-1401:EVMD started on node mysrvr01.
2014-10-20 08:27:53.685:
[cssd(4193)]CRS-1713:CSSD daemon is started in local-only mode
2014-10-20 08:27:55.581:
[ohasd(32421)]CRS-2767:Resource state recovery not attempted for ‘ora.diskmon’ as its target state is OFFLINE
2014-10-20 08:28:02.233:
[cssd(4193)]CRS-1601:CSSD Reconfiguration complete. Active nodes are mysrvr01 .

When I checked again 🙂 ah good news not only ASM instance running but also all Instances present on the box . Another puzzle solved.

Happy reading and till next Time ,

Mathijs

Leave a comment Posted on August 26, 2014 Oracle, Oracle Dba, Rman

The good the bad and the corrupted (ORA-01578, ORA-26040, ORA-01110)

Introduction:

At the moment I am part of a team that will upgrade a billing environment from 10.2.0.5 to 11.2.0.4 on Solaris. After a restore and point in time recovery on a preproduction environment the team has upgraded all databases using the manual upgrade method ( still not that confident that the upgrades would run as smooth with the dbua….. ). As always after the upgrade there is a time of hyper care where the alert files should be monitored even more closely for funky issues. This blog is giving you some more details on the funky stuff we came across and how we analyzed it. The one thing that did make my frown during this action however was the fact that various tools showed various results ( not necessarily showing all the same results.

Conclusions:

When upgrading important environments a DBA should really have eyes and ears everywhere before performing that upgrade because once upgraded it will be a tough call to proof that something was broken in the old environment already or that it was caused by the upgrade. So I would really recommend to scrutinize your environment like someone studies a creature under a microscope before upgrading questioning broken jobs , invalid objects and as I learned the hard way during this upgrade .. objects with no logging option (DBA_TABLES, DBA_INDEXES, DBA_LOBS, DBA_TAB_PARTITIONS, DBA_LOB_PARTITIONS, DBA_TAB_SUBPARTITIONS, etc.
LOGGING=’NO’ indicates NOLOGGING. ). In my case e a number of objects had been created with the no logging option and indeed only after upgrading I had to fight my way back to find out what was going on , what objects were involved ( in my case it was related to a number of objects , staging tables for a specific user where a drop and recreate and exp/imp dealt with it). I did recommend to make sure that there will be force logging for the complete database ( but was told that customer wants to be able to create objects with no logging option for performance reasons).

As I mentioned in the blog in the End I was plain lucky that this was caused by staging tables which made the scenario more easy since we could drop and recreate them easily. Once again I learned something ( and found proof again that success just loves preparation). Of course this is a slightly different scenario then the one we will run in production since we will run the Upgrade directly but still would need to bear in mind the objects in production created with the no logging option if one of the databases in scope would need a restore if the upgrade would break the database. Well in this case all databases where upgraded with success so all DBAS happy and confident for the production migration which is scheduled.

Details:

SERVER: mysrvr

Database: OPTMYDB

Timeline:

All Databases of the billing environment have been restored to the new OPT server called mysrvr.
We gave upgraded all Databases from 10.2.0.5 to 11.2.0.4 on Solaris.
After opening the database OPTMYDB and running statistics jobs she started throwing error messages in alert about block corruptions as seen in Example 1 below. Yesterday together with a colleague from Adba team the gather statistics issue was resolved and three objects had been identified to have corrupt blocks ( see Example2) . These three objects have been dropped and recreated and there were no more corruption messages in the alert file.
After that I have been asked by my manager to run a dbv for the full database checking all datafiles .
I also have used rman in Parallel to find possible corruption which is still running but first output is in example3 :

Example 1

## In the alertfile this was the information We came across setting off the first alarm bells:

Mon Aug 04 22:00:43 2014

DBMS_STATS: GATHER_STATS_JOB encountered errors. Check the trace file.

Errors in file /opt/oracle/OPTMYDB/diag/rdbms/MYDB/OPTMYDB/trace/OPTMYDB_j002_3640.trc:

ORA-20011: Approximate NDV failed: ORA-29913: error in executing ODCIEXTTABLEOPEN callout

ORA-29400: data cartridge error

error opening file /home/tmcon/oracle/UNMATCHED_SUBS_3640.log

Errors in file /opt/oracle/OPTMYDB/diag/rdbms/MYDB/OPTMYDB/trace/OPTMYDB_j002_3640.trc (incident=8665):

ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)

ORA-01110: data file 620: ‘/db/MYDB/data/tbsdata_e/tbsdip01_4m_14.dbf’

ORA-26040: Data block was loaded using the NOLOGGING option

Incident details in: /opt/oracle/OPTMYDB/diag/rdbms/MYDB/OPTMYDB/incident/incdir_8665/OPTMYDB_j002_3640_i8665.trc

Example2

I have grepped the ORA-01578 from the alert file and added them to a table to get an overview of datafiles and blocks having the issues. And since the alertfile is a growing objects this is what I got over t he time interval since starting up the database as a 11020.4 environment.

grep ORA-01578 alert_OPTMYDB.log	AFN	BL
ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)	620	391690
ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)	620	391690
ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)	620	391690
ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)	620	391690
ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)	620	391690
ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)	620	391690
ORA-01578: ORACLE data block corrupted (file # 620, block # 391690)	620	391690
ORA-01578: ORACLE data block corrupted (file # 620, block # 392202)	620	392202
ORA-01578: ORACLE data block corrupted (file # 620, block # 392202)	620	392202
ORA-01578: ORACLE data block corrupted (file # 620, block # 392202)	620	392202
ORA-01578: ORACLE data block corrupted (file # 620, block # 392202)	620	392202
ORA-01578: ORACLE data block corrupted (file # 620, block # 392202)	620	392202
ORA-01578: ORACLE data block corrupted (file # 620, block # 392202)	620	392202
ORA-01578: ORACLE data block corrupted (file # 620, block # 392202)	620	392202
ORA-01578: ORACLE data block corrupted (file # 661, block # 423946)	661	423946
ORA-01578: ORACLE data block corrupted (file # 661, block # 423946)	661	423946
ORA-01578: ORACLE data block corrupted (file # 661, block # 423946)	661	423946
ORA-01578: ORACLE data block corrupted (file # 661, block # 423946)	661	423946
ORA-01578: ORACLE data block corrupted (file # 661, block # 423946)	661	423946
ORA-01578: ORACLE data block corrupted (file # 661, block # 423946)	661	423946
ORA-01578: ORACLE data block corrupted (file # 661, block # 423946)	661	423946

## On mos I retrieved a note that offered more information on the object that was located around the corrupted block:

select file_id AFN, relative_fno, tablespace_name
from dba_data_files
where relative_fno=&RFN;
Enter value for rfn: 620
old 3: where relative_fno=&RFN
new 3: where relative_fno=620

AFN RELATIVE_FNO TABLESPACE_NAME
———- ———— ——————————
3689 620 UNDO_TBS_01
620 620 TBSDIP01_4M

## Used this statement to find the object that was on that spot in the tablespace:
select *
from dba_extents
where file_id = &AFN	620
and &BL between block_id AND block_id + blocks – 1;	391690

	620
	392202
SQL> select *
from dba_extents
where file_id = &AFN
and &BL between block_id AND block_id + blocks – 1;
2 3 4 Enter value for afn: 620
old 3: where file_id = &AFN
new 3: where file_id = 620
Enter value for bl: 391690
old 4: and &BL between block_id AND block_id + blocks – 1
new 4: and 391690 between block_id AND block_id + blocks – 1

OWNER
——————————
SEGMENT_NAME
——————————————————————————–
PARTITION_NAME SEGMENT_TYPE TABLESPACE_NAME
—————————— —————— ——————————
EXTENT_ID FILE_ID BLOCK_ID BYTES BLOCKS RELATIVE_FNO
———- ———- ———- ———- ———- ————
SCOTT
SCOTT_BPS_05062014000_NOBP
TABLE TBSDIP01_4M
0 620 391689 4194304 512 620


SQL> select *
from dba_extents
where file_id = &AFN
and &BL between block_id AND block_id + blocks – 1;
2 3 4 Enter value for afn: 620
old 3: where file_id = &AFN
new 3: where file_id = 620
Enter value for bl: 392202
old 4: and &BL between block_id AND block_id + blocks – 1
new 4: and 392202 between block_id AND block_id + blocks – 1

OWNER
——————————
SEGMENT_NAME
——————————————————————————–
PARTITION_NAME SEGMENT_TYPE TABLESPACE_NAME
—————————— —————— ——————————
EXTENT_ID FILE_ID BLOCK_ID BYTES BLOCKS RELATIVE_FNO
———- ———- ———- ———- ———- ————
SCOTT
SCOTT_BPS_05062014000_NORUEB
TABLE TBSDIP01_4M
0 620 392201 4194304 512 620



SQL> select file_id AFN, relative_fno, tablespace_name
from dba_data_files
where relative_fno=&RFN;
2 3 Enter value for rfn: 661
old 3: where relative_fno=&RFN
new 3: where relative_fno=661

AFN RELATIVE_FNO TABLESPACE_NAME
———- ———— ——————————
661 661 TBSDIP01_4M

select *
from dba_extents
where file_id = &AFN
and &BL between block_id AND block_id + blocks – 1;	661	423946

OWNER
——————————
SEGMENT_NAME
——————————————————————————–
PARTITION_NAME SEGMENT_TYPE TABLESPACE_NAME
—————————— —————— ——————————
EXTENT_ID FILE_ID BLOCK_ID BYTES BLOCKS RELATIVE_FNO
———- ———- ———- ———- ———- ————
SCOTT
SCOTT_SII_05062014000R_BAN
TABLE TBSDIP01_4M
0 661 423945 4194304 512 661

Example3

On Mos I also retrieved a note that offered RMAN as a tool to find logical corruption. Since I am curious by nature of course had to use that goodie too !

RMAN> run {
allocate channel d1 type disk;
allocate channel d2 type disk;
allocate channel d3 type disk;
allocate channel d4 type disk;
backup validate check logical database;
}

## Running this in Rman will put rows if any in the v$database_block_corruption. When i asked for more details on this view i was told that it should return to 0 rows when rerunning. I restarted the rman process after some time (so maybe since it did not complete it did not wrap up properly but at second run I noticed still rows present there).

SQL> select * from V$DATABASE_BLOCK_CORRUPTION

FILE# BLOCK# BLOCKS CORRUPTION_CHANGE# CORRUPTIO

———- ———- ———- —————— ———

235 34825 92 1.3760E+13 NOLOGGING

235 323083 510 1.3760E+13 NOLOGGING

548 315914 833 1.3760E+13 NOLOGGING

648 148489 512 1.3760E+13 NOLOGGING

## Well the good thing was that this showed in one view what most likely was the cause of the issue : Objects being created with nologging option thus invalidating a 100 % recovery after a restore ( and recovery of a number of archives ) and upgrade to 11G after that.

From Oracle support I got this as a good note as it turned out that the corruption was caused by no logging operations:

The Gains and Pains of Nologging Operations in a Data Guard Environment (Doc ID 290161.1)

ORA-1578 / ORA-26040 Corrupt blocks by NOLOGGING – Error explanation and solution (Doc ID 794505.1)

A quote from this Note really made me both frown and giggle:

…… Begin Quote

Note that the data inside the affected blocks is not salvageable. Methods like “Media Recovery” or “RMAN blockrecover” will not fix the problem unless the data file was backed up after the NOLOGGING operation was registered in the Redo Log.

…… END Quote

I also learned that the way for Oracle identifies that the block was before invalidated due to NOLOGGING is by updating most of the bytes in that block with 0xff but only if that “invalidate” redo is applied in a Recovery. If the associated redo/archived log file is used to RECOVER the data files ( which was the case in this preproduction environment) , Oracle invalidates such blocks and the error ORA-26040 along with error ORA-1578 are reported by SQL statements in the next block reads. So in this case the recovery was done but blocks were touched by NOLOGGING operations were marked soft corrupt during the recovery as those redo logs with flag “this block was nologging” were applied to the block.

http://docs.oracle.com/cd/E11882_01/backup.112/e10642/osadvsce.htm#BRADV90047

The recommendation is : Always performs backup after NOLOGGING operations, don’t touch those blocks again, use that backup for recovery.

As always happy reading and till we meet again,

Mathijs

Leave a comment Posted on August 18, 2014 Oracle, Oracle Dba, Rac

Dropping redo groups in Another Thread

Introduction:

Quite some time ago I had to turn a Rac environment into a single Instance / Database. However I did notice there where still redo groups of the second instance present which I wanted to drop. This is just a quick blog to show steps I have followed :

## Checking about the redologs and the thread information:

SQL> select * from v$log;

GROUP# THREAD# SEQUENCE# BYTES BLOCKSIZE MEMBERS ARC STATUS FIRST_CHANGE# FIRST_TIME NEXT_CHANGE# NEXT_TIME

———- ———- ———- ———- ———- ———- — —————- ————- ——————- ———— ——————-

1 1 1931 2147483648 512 2 YES INACTIVE 1.3789E+13 14.08.2014 18:46:19 1.3789E+13 18.08.2014 07:08:18

2 1 1933 2147483648 512 2 YES INACTIVE 1.3789E+13 18.08.2014 07:08:20 1.3789E+13 18.08.2014 07:08:22

3 1 1934 2147483648 512 2 NO CURRENT 1.3789E+13 18.08.2014 07:08:22 2.8147E+14

4 2 128 2147483648 512 2 YES INACTIVE 146319194 19.04.2012 23:21:10 146397537 20.04.2012 09:19:04

5 2 127 2147483648 512 2 YES INACTIVE 146311735 19.04.2012 22:35:29 146319194 19.04.2012 23:21:10

6 2 126 2147483648 512 2 YES INACTIVE 146169044 18.04.2012 23:20:54 146311735 19.04.2012 22:35:29

## Now lets try to drop a group that is part of 2nd Thread

SQL> alter database drop logfile group 4;

alter database drop logfile group 4

ERROR at line 1:

ORA-01623: log 4 is current log for instance MYDBP12 (thread 2) – cannot drop

ORA-00312: online log 4 thread 2: ‘+MYDBP1_REDO/MYDBP1/onlinelog/group_4.260.772812657’

ORA-00312: online log 4 thread 2: ‘+MYDBP1_DATA/MYDBP1/onlinelog/group_4.267.772812685’

## Checking Threads

SQL> select THREAD#, STATUS, ENABLED from v$thread;

THREAD# STATUS ENABLED

———- —— ——–

1 OPEN PUBLIC

2 CLOSED PUBLIC

## And as we saw in first query which groups belong to the thread we want to drop:

SQL> select group# from v$log where THREAD#=2;

GROUP#

———-

## First we need to make sure that the thread will not interfere anymore so we disable it

SQL>

SQL> alter database disable thread 2;

Database altered.

## Now we can drop the logfile group:

SQL> alter database drop logfile group 4;

Database altered.

SQL> alter database drop logfile group 5;

Database altered.

SQL> alter database drop logfile group 6;

Database altered.

## Believe is one thing , checking is better to see if thread is gone:

SQL> select THREAD#, STATUS, ENABLED from v$thread;

THREAD# STATUS ENABLED

———- —— ——–

1 OPEN PUBLIC

## Lets check the groups from redo:

SQL> select * from v$log;

GROUP# THREAD# SEQUENCE# BYTES BLOCKSIZE MEMBERS ARC STATUS FIRST_CHANGE# FIRST_TIME NEXT_CHANGE# NEXT_TIME

———- ———- ———- ———- ———- ———- — —————- ————- ——————- ———— ——————-

1 1 1931 2147483648 512 2 YES INACTIVE 1.3789E+13 14.08.2014 18:46:19 1.3789E+13 18.08.2014 07:08:18

2 1 1933 2147483648 512 2 YES INACTIVE 1.3789E+13 18.08.2014 07:08:20 1.3789E+13 18.08.2014 07:08:22

3 1 1934 2147483648 512 2 NO CURRENT 1.3789E+13 18.08.2014 07:08:22 2.8147E+14

Happy Dba again !

Enjoy reading and till we meet again,

Mathijs

Leave a comment Posted on August 15, 2014 Oracle, Oracle Dba, Rman

Is your backup strategy safe ( a story of BCV – Snap restores with EMC)

Introduction:

As a dba there should always be some room to improve your backup and recovery scenarios. This blog is about a judgment day scenario – losing a 3TB database in full and your bosses are asking what will you do and when will the database be back on its feet. In such scenarios I do tend to debate when do you really lose the full database with a need to restore it .. proper responses might be maybe during an upgrade to a newer Oracle Release or when you lose the server where the database is running (however given the fact that a lot of sites use SAN that would even offer other options than a restore of such a big database not that likely). In my experience it would be much more common to come across scenarios to restore single datafiles , tablespaces . But OK for the argument’s sake and to proof we have a scenario when we lose the full database ( means all data files and control files) let us go into more detail with that.

Details:

On my most important databases this has been the setup in the past when implementing the database(s) in ASM to give us a save feeling.

Every database has three disk groups called SID_DATA , SID_FRA and SID_REDO .
Of course database files are in the SID_DATA , Control files and REDOLOG group members are in SID_DATA and SID_REDO and the archives are put to the SID_FRA.
Fortunately we are using EMC technology , both Snap and BCV. We use them to set up clone – reporting environments, pre-production – and do our backups with it.

As with regard to the backups an interesting debate has risen this week which triggered this blog. In the setup of the Snap and BCV it has always been considered that there have to be two of them for each database. One holding the SID_DATA disk group ( means the database files) and one Snap or BCV holding SID_FRA and SID_REDO. When a backup is triggered, the following actions are performed on the production side:

In the database it is brought to begin backup ,
In the database a copy of the controlfile is pushed to SID_FRA disk group ,
In the EMC tools the mirror is broken,
In the database an end backup is issued.
On the backup server the database is mounted with the copied version of the controlfile and a level backup is running with rman (both level0 and level 1 ( indeed also using block change tracking ).
After a backup the snap / bcv remains mounted on the backup server for when of a true disaster to be used to restore the full database from disk..
On the production server the archives are saved in intervals to tape directly .

Soo far so good right ? .. We have it all covered (or not ?) . ….

If you take a closer look at a judgment day disaster – recovery ask where customer will say we need a restore of the FULL database ( of 3TB) would we be happy when seeing this ?

If we check the redos and control files we will see this:

1* select a.GROUP#,MEMBER,BYTES/1024/1024 from v$logfile a, v$log b where a.group#= b.group# order by group#;

GROUP# MEMBER BYTES/1024/1024

———- ——————————————————————————– —————

1 +MYDBP1_REDO/mydbp1/onlinelog/group_1.258.772722547 2048

1 +MYDBP1_DATA/mydbp1/onlinelog/group_1.262.772722575 2048

2 +MYDBP1_REDO/mydbp1/onlinelog/group_2.259.772723069 2048

2 +MYDBP1_DATA/mydbp1/onlinelog/group_2.263.772723099 2048

3 +MYDBP1_REDO/mydbp1/onlinelog/group_3.260.772723879 2048

3 +MYDBP1_DATA/mydbp1/onlinelog/group_3.266.772723909 2048

4 +MYDBP1_REDO/mydbp1/onlinelog/group_4.261.772723247 2048

4 +MYDBP1_DATA/mydbp1/onlinelog/group_4.267.772723277 2048

5 +MYDBP1_REDO/mydbp1/onlinelog/group_5.262.772723627 2048

5 +MYDBP1_DATA/mydbp1/onlinelog/group_5.534.772723657 2048

6 +MYDBP1_REDO/mydbp1/onlinelog/group_6.263.772722935 2048

6 +MYDBP1_DATA/mydbp1/onlinelog/group_6.535.772722963 2048

12 rows selected.

## Control files are in :

SQL> show parameter control_files

NAME TYPE VALUE

———————————— ———– ——————————

control_files string +MYDBP1_REDO/mydbp1/controlfile/current.257.771667625, +MYDBP1_DATA/mydbp1/controlfile/current.261.771667625

So if all hell breaks loose and you are asked to restore the backup from the Snap or BCV what will happen …..

First scenario was : well it is all taken care of since we have two bcv – snaps remember, so the dba would contact the storage colleague that he should restore the SID_DATA snap( he should sync it back to production) and after that we would do a recovery using the archives and the online redo logs who are still present on the production box . And we feel very good with this cause we thought of the _FRA and _REDO should not be synced back to production .. right ? ( actually the proper answer is wrong).

As we were discussing this scenario.. And after looking at the locations in the v$logfile we did notice a week spot in that idea.. If we restore the SID_DATA from BCV that would also mean that the first member of every online redolog would be wiped out since we have a redo member in the SID_DATA diskgroup ( Oracle does not like online redologs NOT being in sync).. And we would also lose a current control file since that is too in the same diskgroup ( Neither not synced control files btw are like by Oracle). Of course such a scenario will only be needed between dusk till dawn after 4 nights of being on call .. and all shouting we need this issue fixed as soon as possible so there would be little time to investigate and set up a scenario.

Looking at this scenario at hand, when being asked to restore asap from BCV, losing one of the control files well that could easily be fixed by starting the database with one control file ( since we did not touch the _FRA and _REDO diskgroups (we did not restore the second BCV !! lucky us) that would offer us still a current control file and after doing our activities to restore and recover , we could use rman to copy the controlfile again to a second – third place and amend the spfile) .

The online redo member however that would hurt bad if it really would occur that one online redo log member would be overwritten ( since we Restore from the SID_DATA SNAP – BCV) to be fastest possible way back on our feet from disk once the full database would be destroyed. In a lab test I could consider perhaps a scenario where mounting the database and dropping the first member from each group ….. but not on a production highly important database like in this scenario..

So that means that we will need to make sure that when a SID_DATA snap- bcv is used (resynced to production) to restore from disk it should only hold Datafiles and ok a control file (and not also a online redo log member as happens at the moment) .

In this case I will go and set up new online redo log groups and I will set them up in the SID_FRA and SID_REDO diskgroup. Then I will do log switches and in the end will drop the groups that had members both in _DATA and _REDO. After that .. I would be much more relaxed for my judgment day restore request to recover the FULL 3 TB database from the snap – bcv at maximum speed. It is not that much work to carry out and I am sure I feel a lot more confident that even a scenario where a 3TB database needs to be restored from a BCV can be done quit quickly and with less risks.

As Always happy reading and till we meet again,

Mathijs

Leave a comment Posted on August 2, 2014August 2, 2014 Oracle, Oracle Dba, Rac

The return of the relink Grid Infrastructure and Rdbms relink

Introduction:

This week I have been part of the debate again , do we or don’t we relink when major activities like Upgrade of Linux Kernel is performed . I have been asked to do the relink after the Rac cluster was upgraded on Linux. So as always thought it would be wise to make notes during the day as a plan to be performed during the night . In this blog you will find the steps i have performed on a two node Rac cluster with 11.2.0.4 Grid Infrastructure and two Oracle software trees holding 11.2.0.4 Rdbms and 11.1. Rdbms.

With regard to relinking discussion in team had been like .. 1) we might break things in relinking and 2) we don’t have the resources to do that for every server. My recommendation is to follow Oracle in this and do deal with relink of the Grid Infra right after OS has been relinked . Cause if something is broken during the Upgrade and your relinking there after well at least you know where it came from and can deal with things as from there . Where as if you do not relink your Software right after such a major change on OS you might still be hit in the dark in the upcoming weeks and you would need to figure out then what might have caused things.

You can even debate on the fact if it is needed to stop the resources like listeners and databases gracefully before shutting down the cluster or to perform a checkpoint in your database and just shutdown the crs . I have been doing both approaches and never had issues so far. But i can imagine that heavy used , busy systems might prefer the grace shutdown before shutting down GI.

Below you will find my steps . As always happy reading and till we meet again ,

Mathijs.

Detailed Plan:

	mysrvrar / mysrvrbr	Steps 1 – 8 will be performed on all two nodes in my cluster, in a sequential order with some delay to make sure no cluster panic will occur.
1	crsctl status resource -t>/tmp/BeforeWork.lst	Check your cluster in order to be able to compare it to what it looks like after the relinking. Maybe it is even a good idea to put it into a file. Often i end up on clusters which i am not that familiar with on a daily basis. So i tend to make this overview before i start working on the cluster.
2	cSpfile.ksh	This is a home made script in which several activities are performed. It will perform a create a spfile , do a checkpoint and do switch logfile right before shutting down the cluster node.
3	emctl stop agent
4	srvctl stop home -o $ORACLE_HOME -s /tmp/statusRDBMS -n mysrvrar	This will stop all resources that started from 1120.4 home and keep a record of them in the file in /tmp/status RDBMS. This will be convenient when starting again .
5
6	srvctl stop instance -d MYDBCM -i MYDBCM1	This is a shared cluster so we have customers requiring the 1120.4 software and some the 11.1 software . The 11.1 databases have to be stopped individually.
	srvctl stop instance -d MYDBCMAC -i MYDBCMAC1
7	srvctl stop listener -n mysrvrar -l listener_MYDBCM1	It is common to have a listener per database so i will stop the 11.1 listener in proper way as well.
	srvctl stop listener -n mysrvrar -l listener_MYDBCMAC1
8	As root:	Dealing with the cluster means you have to logon or perform sudo su – as the ORACLE user to become ROOT to perform the needed task to stop the cluster-ware on the cluster node.
9	cd /opt/crs/product/11204/crs/bin
10	./crsctl disable crs	During this maintenance Linux will be patching and rebooting various times so i was asked to make sure that the Grid Infra structure is not starting at each reboot till we are ready.
11	./crsctl stop crs	Last step as preparation for the Linux guys to patch the Machines . Shutting down the Grid Infra structure. Time to take a 2hr sleep.
	Time to Relink the software on the two nodes	Starting relink on the first node. Performing steps 9 and following . I will complete all steps needed on the first node and see to it that the Grid Infrastructure is started before moving on to the second node.
12	CHECK IF CRS IS DOWN otherwise REPEAT step 4	After Returning to the cluster still check if crs is down. Because it is better to be safe then sorry.
13	As root:	In order to relink the Grid Infra you have to become the root user again.
14	cd /opt/crs/product/11204/crs/bin	as root
15	cd /opt/crs/product/11204/crs/crs/install
16	perl rootcrs.pl -unlock	Earlier this night the GI was shutdown for Linux patching. When you perform this perl rootcrs .pl -unlock it will try to shutdown the GI. So in my case i got a message that the system was not able to stop the crs ..
17	As the grid infrastructure for a cluster owner:	This was a bit tricky. Cause the owner of the Grid Infra in my case is Oracle so dont try this as root . Better to open a second window as Oracle for the steps below.
18	export ORACLE_HOME=/opt/crs/product/11204/crs	As the Oracle user.
	cd /opt/crs/product/11204/crs/bin	As the Oracle user.
19	relink	Relink will also write a relink log which you can tail.
20	[Step 1] Log into the UNIX system as the Oracle software owner:	Once the GI software has been relinked it is time for relinking the Oracle Homes( in my case an 11.1 and 11.2. software tree). In my case i logged on as the oracle user.
21	[STEP 2] Verify that your $ORACLE_HOME is set correctly:
22	For all Oracle Versions and Platforms, perform this basic environment check first:
	export $ORACLE_HOME= /opt/oracle/product/11204_ee_64/db	Oracle 11.2.0.4
	export $ORACLE_HOME= /opt/oracle/product/111_ee_64/db	Oracle 11.1

	cd $ORACLE_HOME
	pwd	Check the environment.

23	[Step 3] Verify and/or Configure the UNIX Environment for proper relinking:
	Set LD_LIBRARY_PATH to include $ORACLE_HOME/lib	LD_LIBRARY_PATH needs to be in place so when relinking both ORACLE versions make sure you set the environment in a correct way.
	export LD_LIBRARY_PATH=/opt/oracle/product/11204_ee_64/db/lib
	echo $LD_LIBRARY_PATH

	export LD_LIBRARY_PATH=/opt/oracle/product/111_ee_64/db/lib
	echo $LD_LIBRARY_PATH
24	[Step 4] For all Oracle Versions and UNIX Platforms:
	Verify that you performed Step 2 correctly:	Check , check and check again

	env \| grep -i LD_ ….make sure that you see the correct absolute path for $ORACLE_HOME in the variable definitions.
25	[Step 5] For all Oracle Versions and UNIX Platforms:
	Verify umask is set correctly:
	umask	This must return 022. If it does not, set umask to 022.
	umask 022
	umask
26	[Step 6] Run the OS Commands to Relink Oracle:
	Important Notes:
	* Before relinking Oracle, shut down both the database and the listener.
	* The following commands will output a lot of text to your session window. To capture this output for upload to support, redirect the output to a file.
	* If relinking a client installation, it’s expected that some aspects of the following commands will fail if the components were not originally installed.
27	For all UNIX platforms:

	Oracle 8.1.X, 9.X.X, 10.X.X or 11.X.X
	————————————-
	$ORACLE_HOME/bin/relink all	Oracle 11.1
	$ORACLE_HOME/bin/relink	oracle 11.2
		writing relink log to: /opt/oracle/product/11204_ee_64/db/install/relink.log
28	How to Tell if Relinking Was Successful:	If relinking was successful, the make command will eventually return to the OS prompt without an error. There will NOT be a ‘Relinking Successful’ type message. I performed a tail on the logfiles as relink was running in a second window and did not see any issues. And as the note says wait for the prompt to return ( with no comments – messages ) and you are good to go
29	As root again:	Since i am relinking both the GI and the RDBMS i have moved this step ( starting the GI again till after the RDBMS relinking has finished because of course during the relink of RDBMS the environment ( Databases , listeners ) have to be down !
30	cd /opt/crs/product/11204/crs/crs/install/
31	perl rootcrs.pl -patch	This perl rotcrs.pl -patch wil also start the cluster on this node again.NOTE we had issues that this was hanging on the first Node . It appeared that the second node was up and running after all ( my Linux Colleague had issued a crsctl disable crs from an old not active cluster-ware software which was still present on the box) . So in this specific scenario on second node i stopped crs again then the script continued on first node.
32	crsctl enable crs	If you have used the disable crs . Enable it again so after a node reboot the GI will start.
33	As Oracle
	emctl start agent	Agent was already running so no manual action needed.
34	srvctl start home -o $ORACLE_HOME -s /tmp/statusRDBMS -n mysrvrar	This will start all resources started from 1120.4 home. The resources had been saved previously in the /tmp/statusRDBMS file

35	srvctl start instance -d MYDBCM -i MYDBCM1	Starting the 11.1 Resources.
	srvctl start instance -d MYDBCMAC -i MYDBCMAC1

36	srvctl start listener -n mysrvrar -l listener_MYDBCM1	Starting the 11.1 Resources.
	srvctl start listener -n mysrvrar -l listener_MYDBCMAC1

37	As Oracle User on the second node once it is relinked:
38	srvctl start instance -d MYDBCM -i MYDBCM2	Starting the 11.1 Resources.
	srvctl start instance -d MYDBCMAC -i MYDBCMAC2

39	srvctl start listener -n mysrvrbr -l listener_REQMOD2	Starting the 11.1 Resources.
	srvctl start listener -n mysrvrbr -l listener_MYDBCM2

	srvctl start home -o $ORACLE_HOME -s /tmp/statusRDBMS -n mysrvrbr
	crsctl status resource -t	Check your cluster again and compare the result with the status before. Hopefully all resources will appear online online or at least show the situation as it was before . There might be an extra activity if you are using services that have been relocated during the action. In such case you will have to relocate them again to the original location.

Leave a comment Posted on July 27, 2014 Oracle, Oracle Dba, Rac

The Patch and the Furious ( Patching Grid Infra 11.2.0.3. and Rdbms 11.2.0.3 with PSU April 2014)

Introduction:

In June 2014 I have been upgrading quite a few environments in our billing environment which was still 11.2.0.5.0. for both for Grid infra structure and Rdbms on RedHat Linux. My first scenario after reading and setting up a first environment was to install a mandatory 12539000 (well mandatory for that patch level) One off patch and then upgraded to 11.2.0.3 with PSU April 2014. But of course a Dba should be flexible in his approaches so as a form of adapting while doing I decided that it would be best to use PSU Oct 2012 in full and then Migrate to 11.2.0.3. on both my Grid Infra and Rdbms environment. Since I had an agreement with customer that the latest PSU patch would be applied I aimed for implementing April 2014.

By request I got the following Documents on Mos as a must read before going to the upgrade:

———————————————————————————————————————————
Things to Consider Before Upgrading to 11.2.0.3/11.2.0.4 Grid Infrastructure/ASM (Doc ID 1363369.1)
ORAchk Upgrade Readiness Assessment (Doc ID 1457357.1)
Before upgrade database check this note: Complete Checklist for Manual Upgrades to 11gR2 (Doc ID 837570.1)
Upgrade / Downgrade Assistant: Oracle Database/Client (Doc ID 1561791.2)
———————————————————————————————————————————-

Detailed Plan and comments:

Installation and Patching the software

Current setup :
“Grid Infrastructure Patch Set Update 11.2.0.2.5 (includes DB PSU 11.2.0.2.5)
“Database Patch Set Update : 11.2.0.2.5 (13343424)”

Before beginning, use an Oracle provide tool called “orachk” utility to check your environment for Upgrade Readiness. Reference: ORAchk 11.2.0.3 Upgrade Readiness Assessment (Doc ID 1457357.1).Command: orachk -u -o pre

Things to Consider Before Upgrading to 11.2.0.3/11.2.0.4 Grid Infrastructure/ASM (Doc ID 1363369.1)
orachk.zip

Of course cluvfy is you friend so you should use it as part of preparationruncluvfy.sh stage -pre crsinst -upgrade -n mysrvr01hr,mysrvr02hr -rolling -src_crshome /opt/crs/product/112_ee_64/crs -dest_crshome /opt/crs/product/11203_ee_64/crs -dest_version 11.2.0.3.0 -fixup -fixupdir /tmp -verbose>/tmp/11203Upgrade.lst

Things to Consider Before Upgrading to 11.2.0.3/11.2.0.4 Grid Infrastructure/ASM (Doc ID 1363369.1)
New Oracle Home : /opt/crs/product/11203_ee_64/crs

Orachk script pointed out I would need this One off patch before migrate:PATCH 12539000
The patch must be applied to GI home and is recommended for 11.2.0.2 database homes. It’s available on top of all DB PSUs which are part of corresponding GI PSU.
It’s recommended to be applied with “opatch auto” with latest 11.2 opatch (patch 6880880)as the ROOT user:export PATH=/opt/crs/product/112_ee_64/crs/OPatch/:$PATH
which opatch$GRID_HOME/OPatch/opatch auto /opt/oracle/stage -oh /opt/crs/product/112_ee_64/crs$GRID_HOME/OPatch/opatch auto /opt/oracle/stage -oh /opt/oracle/product/112_ee_64/db

When opatch asks the following question, enter ‘yes’ without quote:
Enter ‘yes’ if you have unzipped this patch to an empty directory to proceed (yes/no):yes

If opatch auto fails, apply it manually:
1. Stop all databases manually as database users: /opt/oracle/product/112_ee_64/db/bin/srvctl stop database -d <dbname>
2. Unlock GI home as root user:For GI Cluster environment:
# $GRID_HOME/crs/install/rootcrs.pl -unlock

For GI Standalone (Oracle Restart):
# $GRID_HOME/crs/install/roothas.pl -unlock

3. Apply the patch to GI and database homes:

As oracle user: /opt/crs/product/112_ee_64/crs/OPatch/opatch napply -oh /opt/crs/product/112_ee_64/crs -local /opt/oracle/stage/12539000

As database user: /opt/crs/product/112_ee_64/crs/OPatch/opatch napply -oh /opt/oracle/product/112_ee_64/db -local /opt/oracle/stage/12539000

4. Lock GI home as root user:

For GI Cluster environment:

# $GRID_HOME/rdbms/install/rootadd_rdbms.sh
# $GRID_HOME/crs/install/rootcrs.pl -patch

For GI Standalone (Oracle Restart):

# $GRID_HOME/rdbms/install/rootadd_rdbms.sh
# $GRID_HOME/crs/install/roothas.pl -patch

5. Start all databases manually as database users: <DB_HOME>/bin/srvctl start database -d <dbname>

Since my ORACLE_BASE (/opt/oracle) is the same as my Home of the Oracle User (/opt/oracle) I had issue that after the patching the owner of /opt/oracle became root!!:
drwxr-x— 31 root dba 4096 May 23 09:21 oracleThis meant trouble if i would end session and perform new ssh session from my admin box(being unable to log in) so I added a check before sign off , cause this has to be oracle:dba

Patching the Grind Infra structure:

As they say always better to be safe the sorry so make a copy of the Crs software before start
## as root:
tar -c –recursion -pP –file=/opt/oracle/export/CRSbackup.tar /opt/crs/product/

If you have had an existing installation on your system, and you are using the same user account to install this installation, then unset the following environment variables: ORA_CRS_HOME; ORACLE_HOME; ORA_NLS10; TNS_ADMIN; and any other environment variable set for the Oracle installation user that is connected with Oracle software homes.

unset ORA_CRS_HOME
unset ORACLE_HOME
unset ORA_NLS10
unset TNS_ADMIN

In RAC environments Upgrade the Grid infra structure Node wise.

Checks you can perform before and after upgrade:
crsctl query has softwareversion
crsctl query crs softwareversion
crsctl query has releaseversion
crsctl query crs releaseversion

/opt/oracle/admin/tools/cSpfile.ksh

This shell script is creating a copy of spfile to Init.ora.

After that I created Migration pfiles with larger settings for shared_pool.

Recommended setting Min. Value Shared_pool_size > 600M ( prefer 1024M).

/opt/oracle/admin/tools/cSrvctlActNew.ksh status / stop / config

This is a shell script to check the current status in the clusterware.

/opt/oracle/admin/tools/cSrvctlAct.ksh config

Check the current setup in the clusterware

Dryrun . Start ./runInstaller to check Prerequisites before install and correct if needed.

Of course clufvy is part of the runInstaller activities. Check for warnings and errors and correct them

in ./runInstaller in the GUI use the option : upgrade an existing Oracle Clusterware and Oracle ASM installation

Note. 11.2.0.3 is an OUT of Place installation that means that you will have to Install it in separate Oracle Home.

Install 11.2.0.3 in /opt/oracle/product/11203_ee_64/db

./opt/oracle/stage/database/runInstaller

unzip /opt/oracle/stage/p6880880_112000_Linux-x86-64.zip in your new GRID_HOME directory.

Copy and install the Latest Opatch to both GI and Rdbms since after this Installation we will have to apply patch.

/opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp

Create a response File needed during the opatch in the subdirectory /opt/crs/product/11203_ee_64/crs/OPatch/ocm/bin/

/opt/crs/product/11203_ee_64/crs/OPatch/ocm/bin/ocm.rsp

export PATH=/opt/crs/product/11203_ee_64/crs/OPatch:$PATH

Opatch runs as root , Set Path

which opatch

Check version of Opatch

opatch auto /opt/oracle/stage -ocmrf /opt/crs/product/11203_ee_64/crs/OPatch/ocm/bin/ocm.rsp -oh /opt/crs/product/11203_ee_64/crs

Run Opatch
Note on dry run the system would not come down since instances still open . I used my tools to stop them after which patching continued
Opatch had ISSUE with Fact that rdbms 11203 had no resources ( it is software only so the patching crashed). Recommendation is to run this part of PSU after the mig. DO NOT run During the GI upgrade !!!!

You may check results with opatch ls inventory when you are pointing to the GRID_HOME or with “orachk” utility. Reference: ORAchk 11.2.0.3 Upgrade Readiness Assessment (Doc ID 1457357.1)./opt/oracle/product/orachk -u -o post

Upgrade the Databases:

Perform MANUAL upgrade for the databases in scope.

During an earlier upgrade DBUA messed up by adding local listener to Init.ora and continued altering the oratab by the Grid agent. That is why I recommend against the DBU for bulk upgrades . I would script the Upgrade using a Fixed Oracle_HOME ( the new one ) and a dedicated initora / spfile for the MIG.

Steps for Manual Upgrade:

Preferred WAY !

utlu112i.sql AND dbupgdiag.sql ( both located in /opt/oracle/admin/tools

dbupdiag.sql can be obtained from MOS.

Create a new pfile from spfile and check if there are parameteres that need increase ( shared_pool_size might be a good candidate, and job_queue_processes needs 0 during the migration. OR if all is fine well then simply make job_queue_processes = 0 in your spfile.

spfile has production size no alter needed for shared_pool_size. Job_queue_processes = 20 is needed.

1) Start sqlplus and run catupgrd.sql script from the NEW $ORACLE_HOME/rdbms/admin

As a preparatation make sure you have listener.ora , all init.oras ( spfiles) password file present in the proper Subdirectories on your NEW ORACLE_HOME.

sqlplus ” / as sysdba “

spool /tmp/upgrade<DB>.log

startup upgrade;

If you needed to prepare a init<sid>.mig as a migration pfile you need to say: startup upgrade pfile=’/ / /init<sid>.mig .When you perform a startup upgrade these parameters are altered by Oracle:ALTER SYSTEM enable restricted session;ALTER SYSTEM SET _system_trig_enabled=FALSE SCOPE=MEMORY;Autotune of undo retention is turned off.

ALTER SYSTEM SET _undo_autotune=FALSE SCOPE=MEMORY;

ALTER SYSTEM SET undo_retention=900 SCOPE=MEMORY;

ALTER SYSTEM SET aq_tm_processes=0 SCOPE=MEMORY;

ALTER SYSTEM SET enable_ddl_logging=FALSE SCOPE=MEMORY;

Resource Manager disabled during database migration: plan ” not set

ALTER SYSTEM SET resource_manager_plan=” SCOPE=MEMORY;

ALTER SYSTEM SET recyclebin=’OFF’ DEFERRED SCOPE=MEMORY;

Resource Manager disabled during database migration

replication_dependency_tracking turned off (no async multimaster replication found)

set echo on

@?/rdbms/admin/catupgrd.sql;

After Catupgrd.sql finishes it will shutdown the database.

2) Check catupgrd.sql spool file for errors.

3) Restart the database in normal mode.

4) @$ORACLE_HOME/rdbms/admin/catuppst.sql;

Post steps for the migration.

5) @$ORACLE_HOME/rdbms/admin/utlrp.sql;

alter system set “_use_adaptive_log_file_sync”=FALSE scope = both;

Requested by customer.

set lines 2000

select instance_name from v$instance;

Check sanity of upgrade.

select * from v$version;

Check sanity of upgrade.

select COMP_NAME,VERSION,STATUS,MODIFIED from dba_registry order by 1;

Check sanity of upgrade all the installed components should be valid !

select * from DBA_REGISTRY_HISTORY order by action_time desc

Check if Catbundle Ran (shows most recent Entry first.

Check $ORACLE_HOME/dbs for the presence / correct init.ora

Should point to the Asm Diskgroup to an Spfile.

srvctl upgrade database -d <Db> -o /opt/oracle/product/11203_ee_64/db

Inform clusterware about altered Oracle home.

srvctl modify database -d<Db> -p ‘+DATA/<Db>/spfile<Db>.ora’

make sure Clusterware knows about the Spfile alter if needed.

srvctl modify database -d <Db> -o ‘/opt/oracle/product/11203_ee_64/db’

make sure Clusterware knows about the New Oracle Home.

If you have a listener per Database make sure it is started from the NEW oracle Home with the correct listener.ora

/opt/oracle/admin/tools/cSrvctlAct.ksh status

Check status of db in cluster with shell script.

/opt/oracle/admin/tools/cSrvctlAct.ksh config

Check configuration of db in cluster.

srvctl stop database -d & start database -d as check . /opt/oracle/admin/tools/cSrvctlAct.ksh stop /opt/oracle/admin/tools/cSrvctlAct.ksh start

As a test stop and start via srvctl stop/start database -d <Db>

ln -s /opt/networker/lib/libnwora.so libobk.so in new oracle home

Check For the Networker Lib present in the new Oracle Home.

run an archive or control file backup as check

Run an archive backup as a test

rman catalog username/password@alias

RMAN> UPGRADE CATALOG;

Apply PSU patch to rdbms:

/opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp

export PATH=/opt/oracle/product/11203_ee_64/db/OPatch:$PATH

Opatch runs as root , Set Path

which opatch

Check version of Opatch

opatch auto /opt/oracle/stage -ocmrf /opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp -oh /opt/oracle/product/11203_ee_64/db

@catbundle.sql psu apply
2. cd $ORACLE_HOME/rdbms/admin
3. sqlplus /nolog
4. SQL> CONNECT / AS SYSDBA
5. SQL> STARTUP
6. SQL> @catbundle.sql psu apply
7. SQL> QUIT

After applying a PSU patch this is needed For each database using the patched ORACLE_HOME. BUT it was not needed in my scenario where I had installed and patched the empty ORACLE_HOME 11.2.0.3 and migrated the databases using the new ORACLE_HOME after that.

FallBack scenarios:

Grid Infra fall back :

Downgrading to a release 11.2.0.1 or later release:

Use the command syntax Grid_home/perl/bin/perl rootcrs.pl -downgrade -oldcrshome oldGridHomePath -version oldGridversion, where oldGridhomepath is the path to the previous release Oracle Grid Infrastructure home, and oldGridversion is the release to which you want to downgrade. For example:

# /u01/app/11.2.0/grid/perl/bin/perl rootcrs.pl -downgrade -oldcrshome /u01/app/11.2.0/grid -version 11.2.0.1.0

If you want to stop a partial or failed 11g release 2 (11.2) installation and restore the previous release Oracle Clusterware, then use the -force flag with this command.

After the rootcrs.pl -downgrade script has completed on all remote nodes, on the local node use the command syntax Grid_home/crs/install/rootcrs.pl -downgrade -lastnode -oldcrshome pre11.2_crs_home -version pre11.2_crs_version [-force], where pre11.2_crs_home is the home of the earlier Oracle Clusterware installation, and pre11.2_crs_version is the release number of the earlier Oracle Clusterware installation.

For example:

# /u01/app/11.2.0/grid/perl/bin/perl rootcrs.pl -downgrade -lastnode -oldcrshome

/u01/app/crs -version 11.1.0.6.0

This script downgrades the OCR. If you want to stop a partial or failed 11g Release 2 (11.2) installation and restore the previous release Oracle Clusterware, then use the -force flag with this command.

Log in as the Grid infrastructure installation owner, and run the following commands, where /u01/app/grid is the location of the new (upgraded) Grid home (11.2):

.Grid_home/oui/bin/runInstaller -nowait -waitforcompletion -ignoreSysPrereqs -updateNodeList -silent CRS=false ORACLE_HOME=/u01/app/grid

As the Grid infrastructure installation owner, run the command ./runInstaller -nowait -waitforcompletion -ignoreSysPrereqs -updateNodeList -silent CRS=true ORACLE_HOME=pre11.2_crs_home, where pre11.2_crs_home represents the home directory of the earlier Oracle Clusterware installation.

For example:

.Grid_home/oui/bin/runInstaller -nowait -waitforcompletion -ignoreSysPrereqs -updateNodeList -silent CRS=true ORACLE_HOME=/u01/app/crs

DownGrade Rdbms – Databases

The database software 11.2.0.2 should still be in place so no need for extra action.

If you are downgrading to Oracle Database 11g Release 1 (11.1), then the COMPATIBLE initialization parameter must be set to 11.0.0 or lower.

Remove Unsupported Parameters from Server Parameter File (SPFILE)

Perform a Full Backup of Oracle Database Before Downgrading

Downgrading Oracle Database to an Earlier Release

1. If you have enabled Oracle Database Vault on your database, then you must:

Grant the Database Vault DV_PATCH_ADMIN role for the SYS account.

Disable Database Vault before downgrading the database.

If you previously had upgraded the database and then used the DBMS_DST PL/SQL package to update the database time zone version, then you must apply the patch for the same time zone file version into the earlier release’s Oracle home before downgrading.

As an example scenario, assume that a release 10.2.0.4 database on Linux x64 using DSTv4 had been upgraded to release 11.2.0.2, and DBMS_DST was then run to update this database to DSTv14. Then, before downgrading from release 11.2.0.3 to 10.2.0.4, you need to apply on the release 10.2.0.4 side the DSTv14 patch for 10.2.0.4 for Linux x64. This ensures that your TIMESTAMP WITH TIME ZONE data is not logically corrupted during retrieval.

To find which time zone file version your database is using, run:

SELECT value$ FROM sys.props$ WHERE NAME = ‘DST_PRIMARY_TT_VERSION’;

If you had set the ORA_TZFILE environment variable to the full path name of the timezone.dat file when you upgraded to Oracle Database 11g Release 2 (11.2), then you must unset it if you subsequently downgrade your database.

Two time zone files are included in the Oracle home directory:

The default time zone file at

$ORACLE_HOME/oracore/zoneinfo/timezonelrg.dat

A smaller time zone file at

$ORACLE_HOME/oracore/zoneinfo/timezone.dat

If you do not unset the ORA_TZFILE variable, then connecting to the database using the smaller time zone file might produce the following errors:

SP2-1503: Unable to initialize Oracle call interface

SP2-0152: ORACLE may not be functioning properly

4. If you have Oracle Application Express on your database, then you must copy the apxrelod.sql file from the Oracle Database 11g Release 2 (11.2) ORACLE_HOME/apex/ directory to a directory outside of the Oracle home, such as the temporary directory on your system.

Make a note of the new location of this file.

5. If you have created objects based on fixed objects, then drop these objects to avoid possible ORA-00600 errors. You can re-create these objects after the downgrade.

6. Log in to the system as the owner of the Oracle Database 11g Release 2 (11.2) Oracle home directory.

This step is required only if Enterprise Manager Database Control is already configured for the database.

Stop Database Control, as follows:

Set the ORACLE_UNQNAME environment variable to the database unique name.

Run the following command:

ORACLE_HOME/bin/emctl stop dbconsole

If the database being downgraded is an Oracle RAC database, then perform this step on all instances.

If you are downgrading an Oracle RAC database to 10g Release 1 (10.1), then you must remove extra voting disks before shutting down the Oracle Clusterware stack.

1. To see the number of voting disks used and to list voting disk paths, run the following command:

Oracle_Clusterware_Home/bin/crsctl query css votedisk

2. Remove each additional voting disk you find in the previous step by running the following command, where path is the voting disk path listed in the File Name column displayed in the previous step:

Oracle_Clusterware_Home/bin/crsctl delete css votedisk path

For example:

Oracle_Clusterware_Home/bin/crsctl delete css votedisk /share/cluster2/vote_cluster2.dbf

Do not delete the last voting disk.

9. At a system prompt, change to the ORACLE_HOME/rdbms/admin directory.

Note:

If you are downgrading a cluster database, then shut down the instance completely and change the CLUSTER_DATABASE initialization parameter to FALSE. After the downgrade, you must set this parameter back to TRUE.

10. Using SQL*Plus, connect to the database instance as a user with SYSDBA privileges.

11. Start up the instance in DOWNGRADE mode:

SQL> STARTUP DOWNGRADE

You might be required to use the PFILE option to specify the location of your initialization parameter file.

12. If you have Enterprise Manager configured in your database, then drop the Enterprise Manager user:

DROP USER sysman CASCADE;

13. Set the system to spool results to a log file so you can track the changes and issues:

SQL> SPOOL downgrade.log

14. Run catdwgrd.sql:

SQL> @catdwgrd.sql

The following are notes about running the script:

You must use the version of the script included with Oracle Database 11g Release 2 (11.2).

You must run the script in the Oracle Database 11g Release 2 (11.2) environment.

The script downgrades all Oracle Database components in the database to the major release or Oracle Database 11g patch release from which you originally upgraded.

If you encounter any problems when you run the script, or any of the scripts in the remaining steps, then correct the causes of the problems and rerun the script. You can rerun any of the scripts described in this chapter as many times as necessary.

If the downgrade for a component fails, then an ORA-39709 error is displayed and the SQL*Plus session terminates without downgrading the Oracle Database data dictionary. All components must be successfully downgraded before the Oracle Database data dictionary is downgraded. You must identify and fix the problem before rerunning the catdwgrd.sql script.

15. Turn off the spooling of script results to the log file:

SQL> SPOOL OFF

Then, check the spool file and verify that there were no errors generated during the downgrade. You named the spool file in Step 13 and the suggested name was downgrade.log. Correct any problems you find in this file and rerun the downgrade script if necessary.

Note:

If you want to save the results of the first time you ran the downgrade script, then before you rerun it be sure to rename downgrade.log to something else.

16. Shut down the instance:

SQL> SHUTDOWN IMMEDIATE

17. Exit SQL*Plus.

18. If your operating system is Linux or UNIX, then change the following environment variables to point to the directories of the release to which you are downgrading:

ORACLE_HOME

PATH

You should also check that your oratab file and any client scripts that set the value of ORACLE_HOME point to the downgraded Oracle home.

Rman Archive backup failing with RMAN-03002, RMAN-06059, ORA-19625 in Rac

Introduction:

As member of the team every so many days I am part of hot line , taking care of Tickets and indeed being the (hopefully friendly) voice in your ear when you call the hot line number of Oracle team at the Company. One of the tickets drew my attention ( hmm maybe cause it was about RMAN because for years I love to work with RMAN) . An archive backup had failed various times to I was asked to investigate and fix. This Blog will show you the analyses and steps I have performed to fix this issue.

Details:

At work we run a shell script to run both level and archive backups and in the logfile that was produced for the Archive backup this was my first clue:

RMAN-00571: ===========================================================
RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-00571: ===========================================================
RMAN-03002: failure of backup command at 07/11/2014 07:27:45
RMAN-06059: expected archived log not found, loss of archived log compromises recoverability
ORA-19625: error identifying file /opt/oracle/product/11202_ee_64/db/dbs/MYDB2_DATA1MYDB2_776281254_47588_2.arc
ORA-27037: unable to get file status
Linux-x86_64 Error: 2: No such file or directory
Additional information: 3

### So it was my interpretation that the specific archive was not present in the ASM diskgroup but it was local present on the other Node in the RAC in the $ORACLE_HOME/dbs directory. My investigations on the three nodes showed me:

## On first node :

SQL> archive log list
Database log mode              Archive Mode
Automatic archival             Enabled <<– wrong cause the archives are supposed to be in the +MYDB2_FRA1 diskgroup as a ground rule.
Oldest online log sequence     51210
Next log sequence to archive   51213
Current log sequence           51213

On the second node :

SQL> archive log list
Database log mode                 Archive Mode
Automatic archival                  Enabled
Archive destination                 MYDB2_DATA1 <<– wrong cause the + is missing.
Oldest online log sequence     47585
Next log sequence to archive   47588
Current log sequence             47588

## on the 3rd node:

SQL> archive log list
Database log mode                 Archive Mode
Automatic archival                  Enabled
Archive destination                 MYDB2_DATA1 <<– wrong cause the + is missing .
Oldest online log sequence     52542
Next log sequence to archive   52545
Current log sequence             52545

So after that my conclusion was that due to the wrong archive_destination on two out of three nodes in my rac the archives where being written on a local filesystem on those two boxes and on top of that in the $ORACLE_HOME/dbs directory. Well that was not good !!

## So first steps to be performed was to correct the archive_destination to:

ALTER SYSTEM SET log_archive_dest_1=’LOCATION=+MYDB2_FRA1′ SCOPE=BOTH SID=’MYDB21′;
ALTER SYSTEM SET log_archive_dest_1=’LOCATION=+MYDB2_FRA1′ SCOPE=BOTH SID=’MYDB2′;
ALTER SYSTEM SET log_archive_dest_1=’LOCATION=+MYDB2_FRA1′ SCOPE=BOTH SID=’MYDB23′;

## Once that was corrected I performed a couple of log switches to see archives being born in the +MYDB2_FRA1 diskgroup. Which was the case so already a bit happy me.

## Since I had noticed that the missing + in the archive destination caused Oracle to create the archives.
## in $ORACLE_HOME/dbs.
## I had to copy the archives present there to asm disk group in asmcmd in the correct sub-folder ( I noticed that the archives had been of the last 2 recent days by the creation date of them in Linux so I was aware where to put them in ASM):

cp /opt/oracle/product/11202_ee_64/db/dbs/MYDB2_DATA1MYDB2_776281254_47523_2.arc .
cp /opt/oracle/product/11202_ee_64/db/dbs/MYDB2_DATA1MYDB2_776281254_47525_2.arc .
cp /opt/oracle/product/11202_ee_64/db/dbs/MYDB2_DATA1MYDB2_776281254_47526_2.arc .

## and I did the same on the other server.

oracle@mysrvr:/opt/oracle/product/11202_ee_64/db/dbs/ [MYDB23]# ls -ltr *.arc .

cp /opt/oracle/product/11202_ee_64/db/dbs/MYDB2_DATA1MYDB2_776281254_52480_3.arc .
cp /opt/oracle/product/11202_ee_64/db/dbs/MYDB2_DATA1MYDB2_776281254_52481_3.arc .
cp /opt/oracle/product/11202_ee_64/db/dbs/MYDB2_DATA1MYDB2_776281254_52482_3.arc .

## Next step was how to find out how to register these archives after they have moved to ASM diskgroup in rman. And again fellow bloggers did not let me down so after spending some time on Google surfing I came up with this:

I connected to the rman environment both target and catalog and I performed this which was nice since I only had to point to the directory where all the archives were located now in ASM after my copy action:

catalog start with ‘+MYDB2_FRA1/MYDB2/ARCHIVELOG/2014_07_10/’;
catalog start with ‘+MYDB2_FRA1/MYDB2/ARCHIVELOG/2014_07_11/’;

## Once that had been done I ran an archive backup with success. And was happy that I had solved another Puzzle .

As always Happy reading and till next time,

Mathijs

Leave a comment Posted on July 4, 2014 Oracle, Oracle Dba, Rac

The good , the bad and the OPatch (applying PSU April 2014 on Rac and Oracle Restart)

Introduction:

Last couple of weeks I have been busy patching and upgrading Production , Preproduction en test environment and during those activities OPatch was my friend and tool for that. Looking back an after talking to colleagues I decided to create a post for this . In my patching activities I had to apply a recent PSU patch to both the Grid Infra structure and Rdbms , do an Upgrade of the software and add the latest PSU patch again. In your preparations for OPatch I had issues with regard to storage present on the mount-point of the Grid Infrastructure . So as part of activities you should take a look at your file-system size Since the PSU patches will need at least 5 GB free space in the mount.

Preparations:

As was mentioned in the introduction make sure you have at least 5GB ( more is better in this case) in the mount-point where the Grid infra Structure is located . In my case I had /opt/crs/product/11202/crs as a mount with 15GB of space. In this mount the grid software had been installed and One Psu patch had been applied in the old days ( we are talking October 2012 PSU ). And while applying a required PSU (October 2013) ( required for the upgrade to Oracle 11.2.0.3) there was not enough space to install the software.
Since my current platform is Linux ( this is all about patching Rac environments and Oracle Restart env.) I looked at Metalink and downloaded: p6880880_112000_Linux-x86-64.zip. With every PSU patch you install you should ask yourself is my opatch up to date enough , or should I download a fresh copy from Metalink. I tend to check and to download a fresh copy every time i am my T-shirt “I-m a patch Dba today and I Like it “.
In my environment my software installs look pretty much like this :
- Grid Infra structure is installed in /opt/crs/product//crs
- Rdbms is installed in /opt/oracle/product/11202_ee_64/db
- oh and a bit confusing perhaps my ORACLE_BASE is the same as the home of the ORACLE user ( which is /opt/oracle)

## tips

•   Make a subdirectory for each psu patch you apply if un unzip N psu patches in same directory opatch will apply them every time again.
•   Is auto really auto , tend to do it with –oh which still works fine for me.
•    Keep your Opatch tool up to date .

## Setting up your patching :

oracle@mysrvr:/opt/oracle/stage []# dir
drwxr-xr-x 5 oracle dba     4096 Jun 23 13:29 .
drwxr-xr-x 32 oracle dba     4096 Jun 23 15:22 ..
drwxr-xr-x 2 oracle dba     4096 Jun 11 13:32 OPatchlogs
drwxr-xr-x 2 oracle dba     4096 Jun 23 13:28 psuApr2014
drwxr-xr-x 2 oracle dba     4096 Jun 23 13:29 psuOct2013

## inside psuOct2013

oracle@mysrvr:/opt/oracle/stage/psuOct2013 []# ls -ltr
total 288260
-rw-r–r– 1 oracle dba        21 Apr 4 2013 README.txt
drwxr-xr-x 5 oracle dba      4096 Apr 4 2013 16459322
-rw-r–r– 1 oracle dba       450 Oct 9 2013 bundle.xml
drwxrwxr-x 9 oracle dba      4096 Oct 10 2013 17082367
-rw-rw-r– 1 oracle dba    141496 Jan 20 05:18 README.html
-rw-rw-r– 1 oracle dba    136871 Jan 20 05:18 PatchSearch.xml
-rwxr-xr-x 1 oracle dba 294574955 Jun 4 07:28 p17272753_112020_Linux-x86-64.zip

## Inside psuApr2014

oracle@mysrvr:/opt/oracle/stage/psuApr2014 []# ls -ltr
total 586820
drwxr-xr-x 5 oracle dba      4096 Jan 9 16:27 17592127
drwxrwxr-x 12 oracle dba      4096 Feb 5 07:04 18031683
-rw-r–r– 1 oracle dba       450 Feb 10 10:16 bundle.xml
-rw-r–r– 1 oracle dba         0 Feb 10 10:17 README.txt
-rw-rw-r– 1 oracle dba     59977 Apr 15 12:18 README.html
-rw-rw-r– 1 oracle dba    125015 Apr 15 14:17 PatchSearch.xml
-rwxr-xr-x 1 oracle dba 600096863 May 16 15:33 p18139678_112030_Linux-x86-64.zip

## Applying PSU April 2014

unzip /opt/oracle/stage/p6880880_112000_Linux-x86-64.zip in your GRID_HOME and ORACLE_HOME directory

/opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp set up a response file (and make not of the absolute path for that response file because you will need it during opatch apply.

/opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp : that is my absolute path to the response file

unzip p18139678_112030_Linux-x86-64.zip ( this was PSU april 2014 )

AS ROOT:export PATH=/opt/crs/product/11203/crs/OPatch:$PATH
export PATH=/opt/oracle/product/11203_ee_64/db/OPatch:$PATH

which opatch ( check if root can run opatch now )

PER NODE in your Cluster as ROOT :
##Crs
opatch auto /opt/oracle/stage/

unzip /opt/oracle/stage/p6880880_112000_Linux-x86-64.zip in your cdora directory

/opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp

/opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp

unzip p18139678_112030_Linux-x86-64.zip

export PATH=/opt/crs/product/11203/crs/OPatch:$PATH
export PATH=/opt/oracle/product/11203_ee_64/db/OPatch:$PATH

which opatch

PER NODE:
##Crs
opatch auto /opt/oracle/stage/

unzip /opt/oracle/stage/p6880880_112000_Linux-x86-64.zip in your cdora directory

/opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp

/opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp

unzip p18139678_112030_Linux-x86-64.zip

export PATH=/opt/crs/product/11203/crs/OPatch:$PATH
export PATH=/opt/oracle/product/11203_ee_64/db/OPatch:$PATH

which opatch

PPER NODE AS ROOT:##Crsopatch auto /opt/oracle/stage/psuApr2014 -ocmrf /opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp -oh /opt/crs/product/11203/crs

##Rdbms

opatch auto /opt/oracle/stage/psuApr2014 -ocmrf /opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp -oh /opt/oracle/product/11203_ee_64/db

## Oracle Restart

/opatch auto /opt/oracle/stage/psuApr2014 -ocmrf /opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp -oh /opt/crs/product/11203/crs

/opatch auto /opt/oracle/stage/psuApr2014 -ocmrf /opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp -oh /opt/oracle/product/11203_ee_64/db

-ocmrf /opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp -oh /opt/crs/product/11203/crs
##Rdbms
opatch auto /opt/oracle/stage/11203 -ocmrf /opt/oracle/product/11203_ee_64/db/OPatch/ocm/bin/ocm.rsp -oh /opt/oracle/product/11203_ee_64/db

## Oracle Restart
/opatch auto /opt/oracle/stage/psuApr2014 -ocmrf /opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp -oh /opt/crs/product/11203/crs

/opatch auto /opt/oracle/stage/psuApr2014 -ocmrf /opt/crs/product/11203/crs/OPatch/ocm/bin/ocm.rsp -oh /opt/oracle/product/11203_ee_64/db

And as last recommendation . Check the logfiles that are produced during the OPatch in detail cause i have seen a situation where the OPatch reported “succeeded” but a detailed look in the logs showed that one of the patches had not been applied due to lack of space !!!!

As always happy reading and have a great day,

Mathijs
